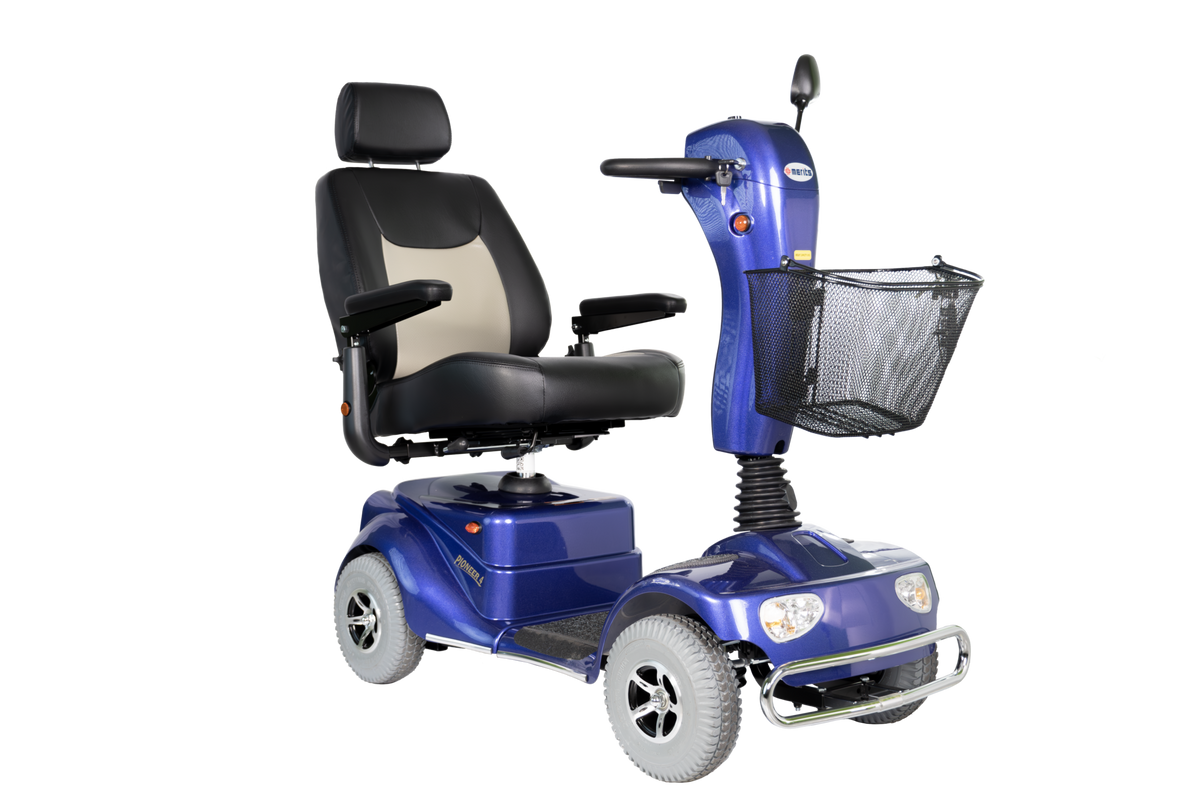

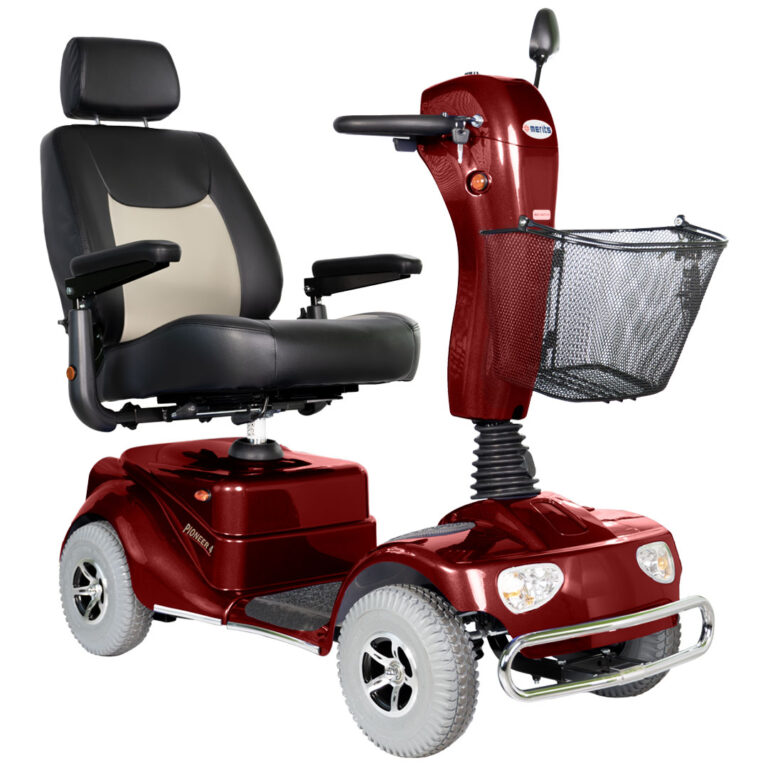

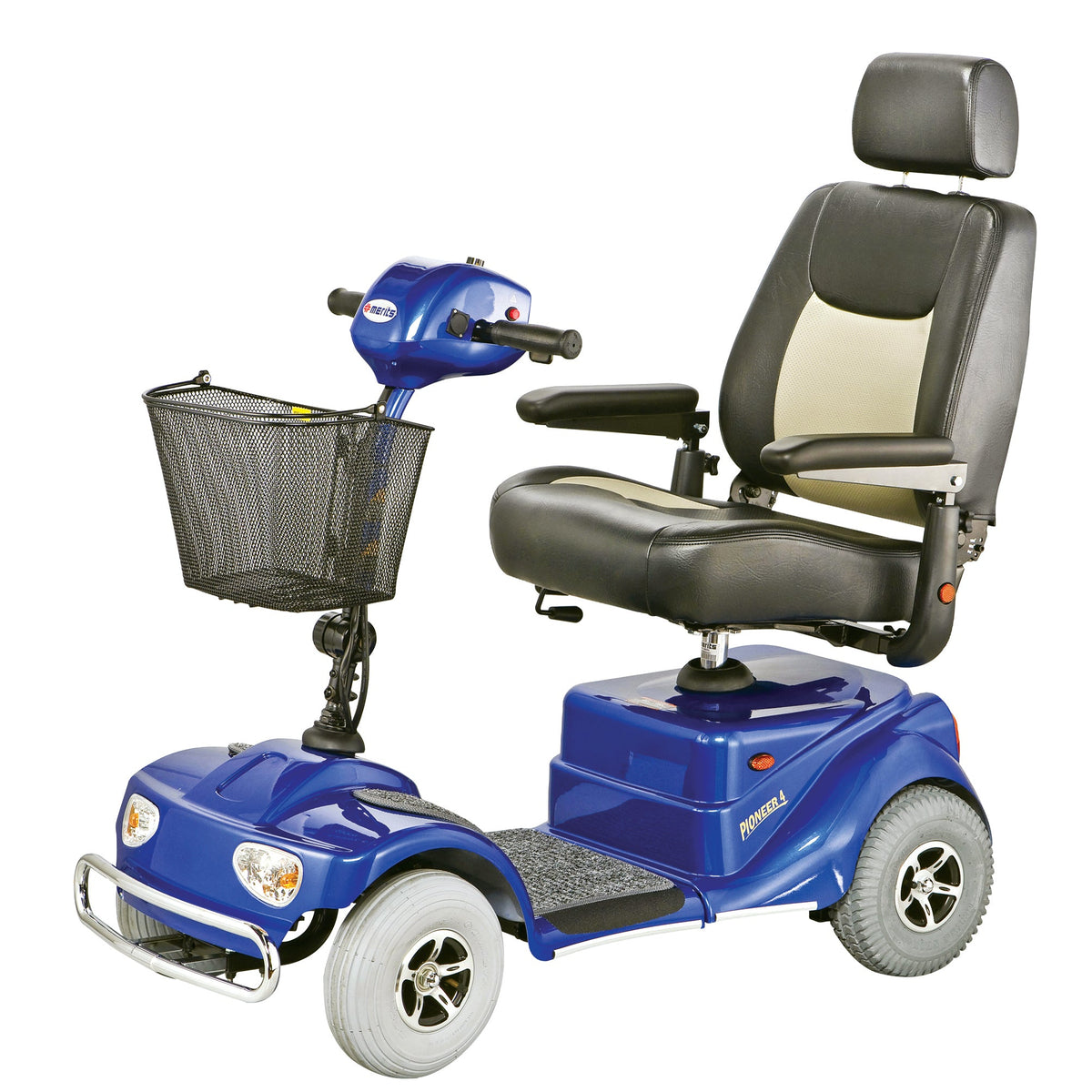

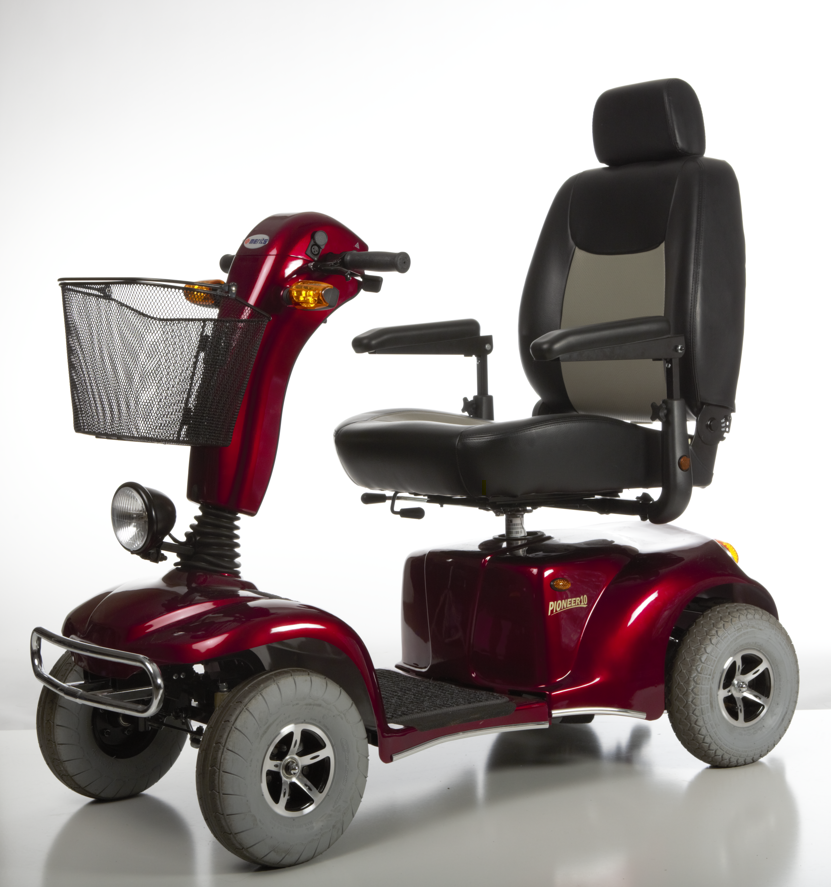

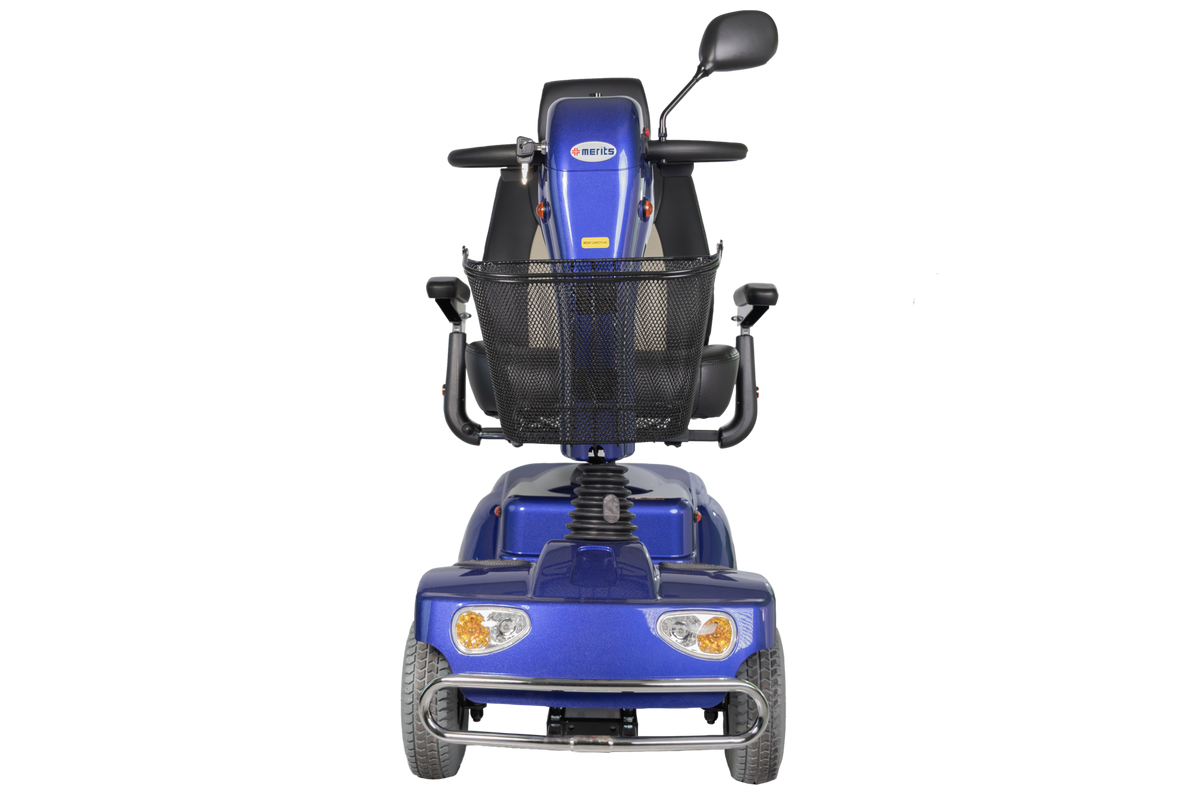

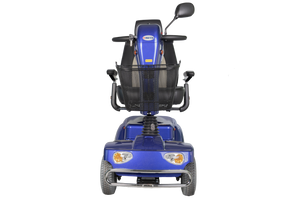

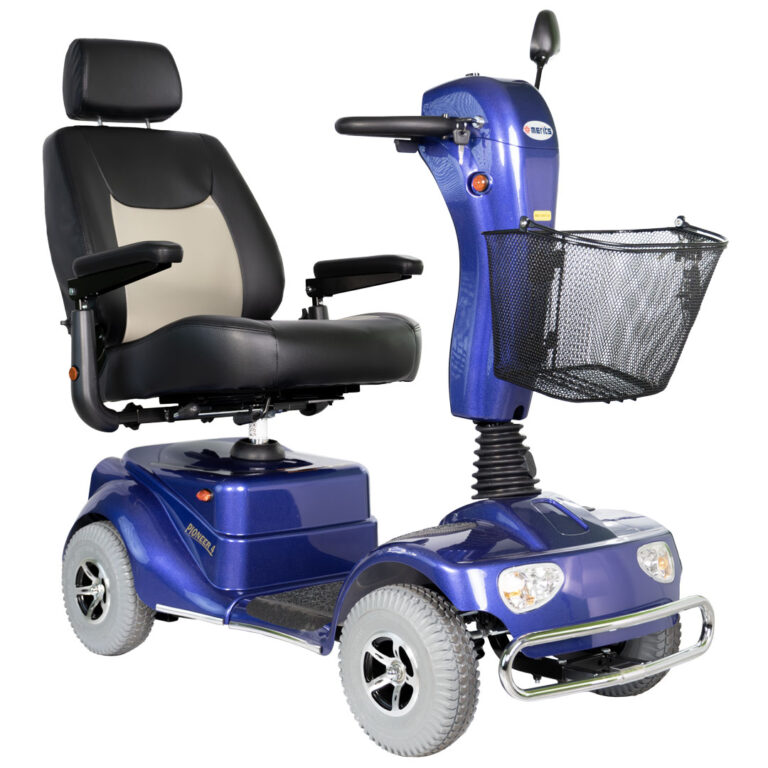

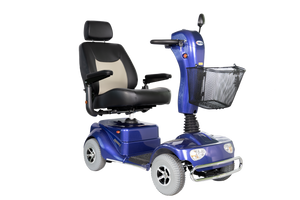

Pioneer 4
K0899
The Pioneer 4 scooter is a heavy-duty four-wheel mobility scooter. The Pioneer 4 is perfect for customers with an above-average build holding up to 400 pounds! With a comfortable 20” seat, this scooter will offer the rider all-day comfort with its thick-cushioned captain’s seat and headrest. The Pioneer 4 four-wheel is a very supportive mobility scooter that has been designed to make it easier to get around indoors or outdoors while traveling.
Features
- Headlight, tail lights, turn signals, and hazard lights
- Hydraulic, adjustable tiller
- 20”W x 20”D x 20”H, sliding, captain seat
- 4” ground clearance
- 3 Wheels for tighter turning radius for increased maneuverability
- 4 Wheels for more stability
Options
Oxygen Tank Holder
Cane & Crutch Holder
Walker Holder
Foldable Rear Basket
Weather Cover
Pioneer 4 Specifications
| Product Number | S141 |
| Weight Capacity | 400 lbs |
| Seat Width | 20" |
| Seat Depth | 20" |
| Backrest Height | 20" |
| Seat-to-Ground Height | 25" - 28" |
| Seat-to-Deck Height | 16" - 19" |
| Overall Length | 48" |
| Overall Width | 23" |
| Overall Height | 45.5" |
| Turning Radius | 52" |
| Ground clearance | 4" |
| Weight of Heaviest Piece | 97 lbs |
| Total Weight | 189 lbs |
| Max Speed | 5 mph |
| Per Charge Range | up to 18 miles |
| Motor | DC 24V, 250W |
| Controller | Dynamic Rhino2 90A |
| Battery Size (2) | 12V/U1 (34AH) |
| Charger | 5A off-board |
| Gradient | 8° |
| Front Wheel(s) | 10" flat-free |
| Rear Wheels | 10" flat-free |
| Suspension | n/a |
| HCPCS Code | K0899 |
| Standard Colors | Red or Blue |
