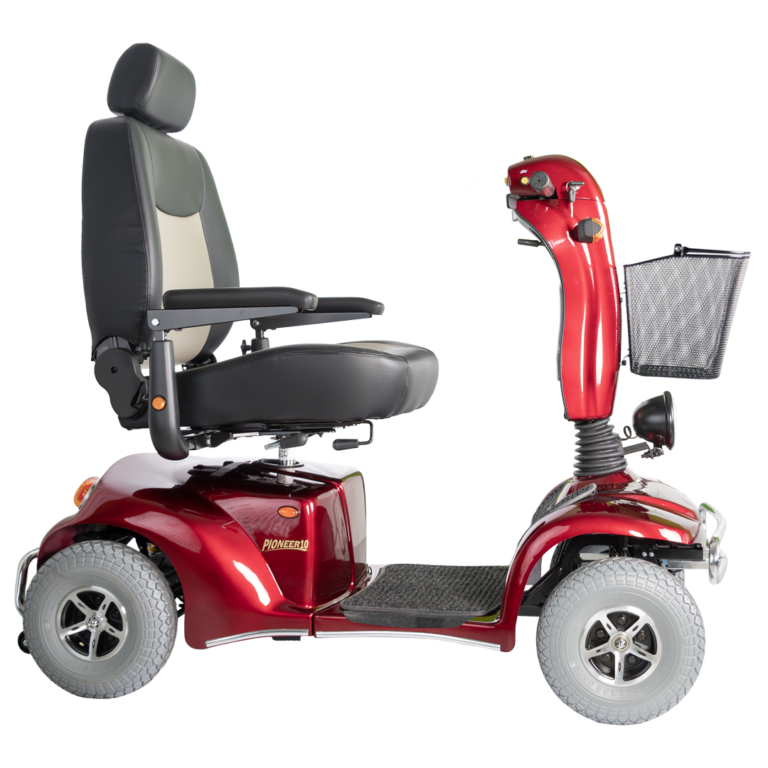

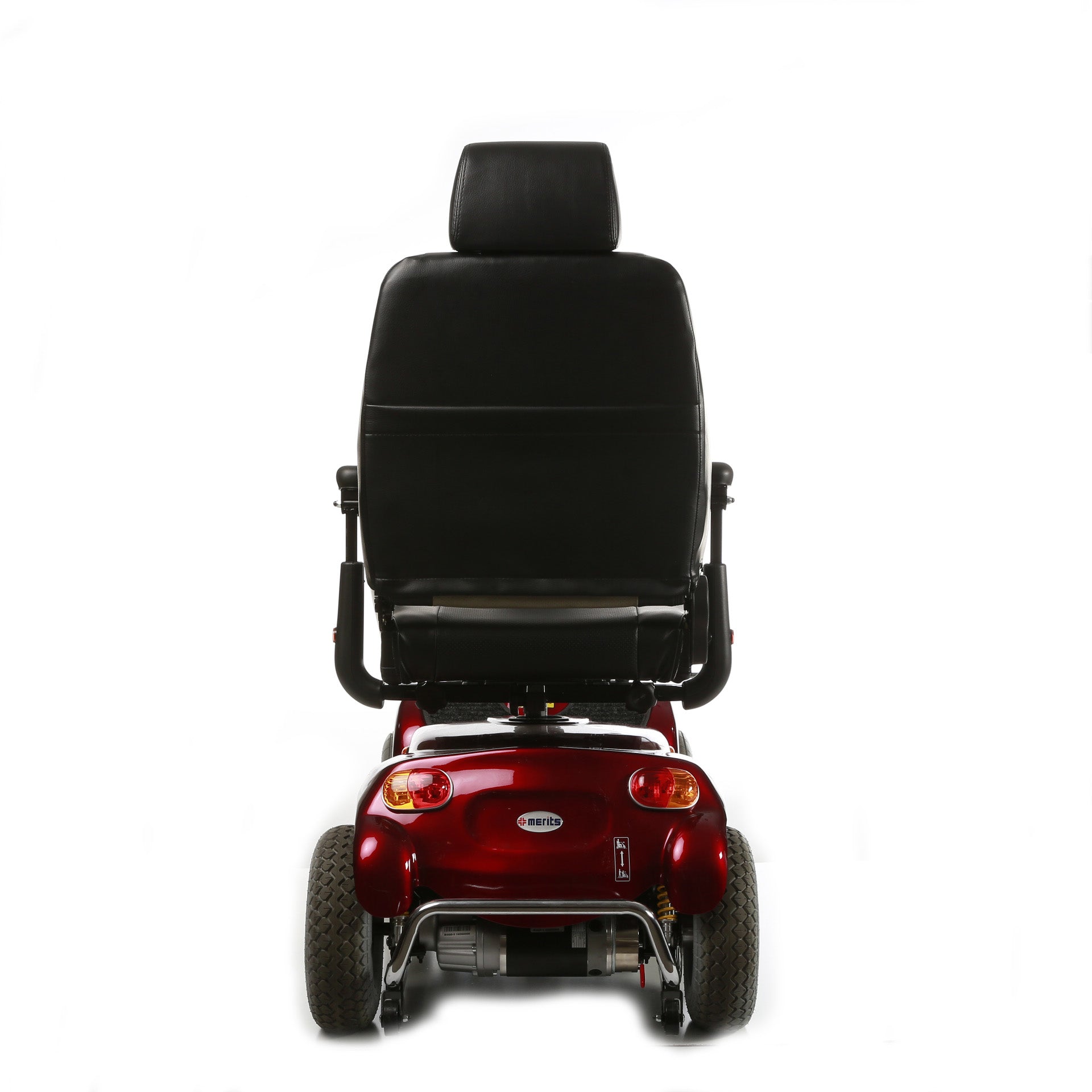

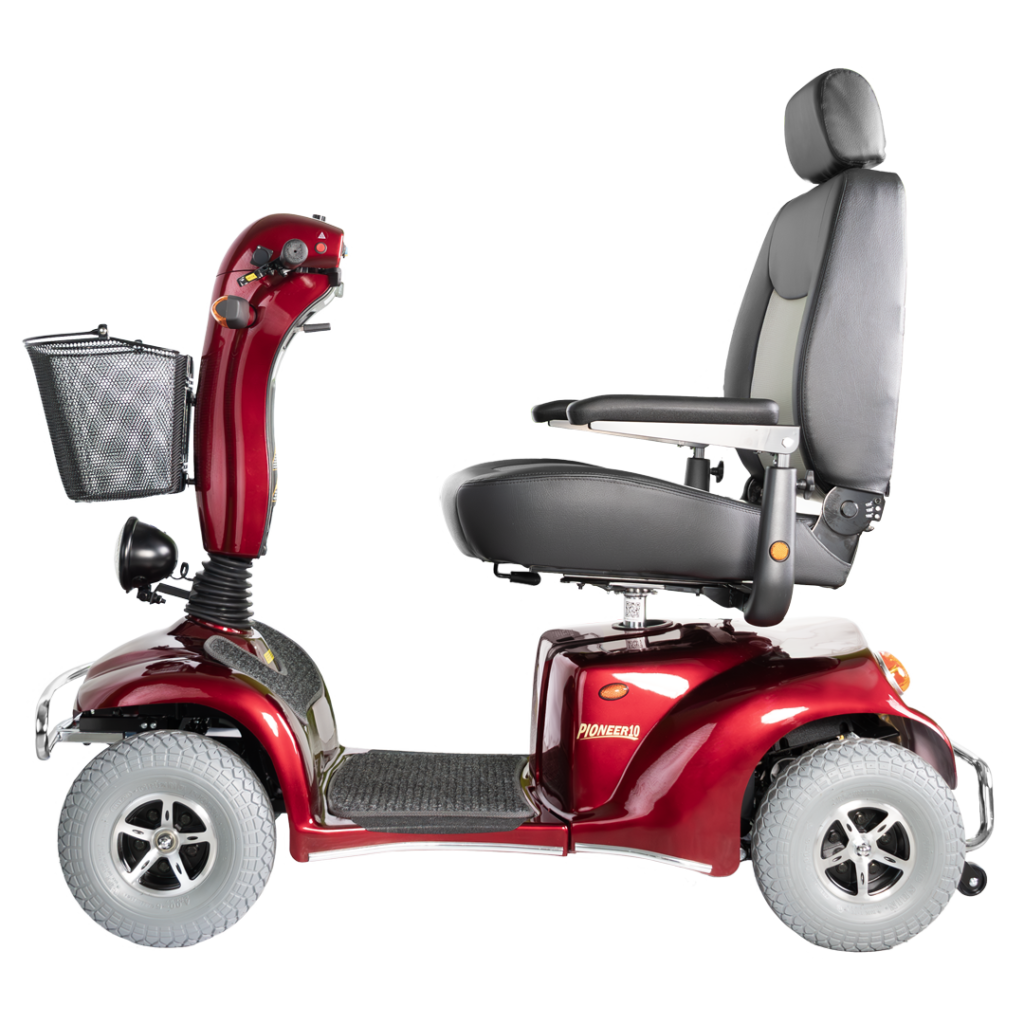

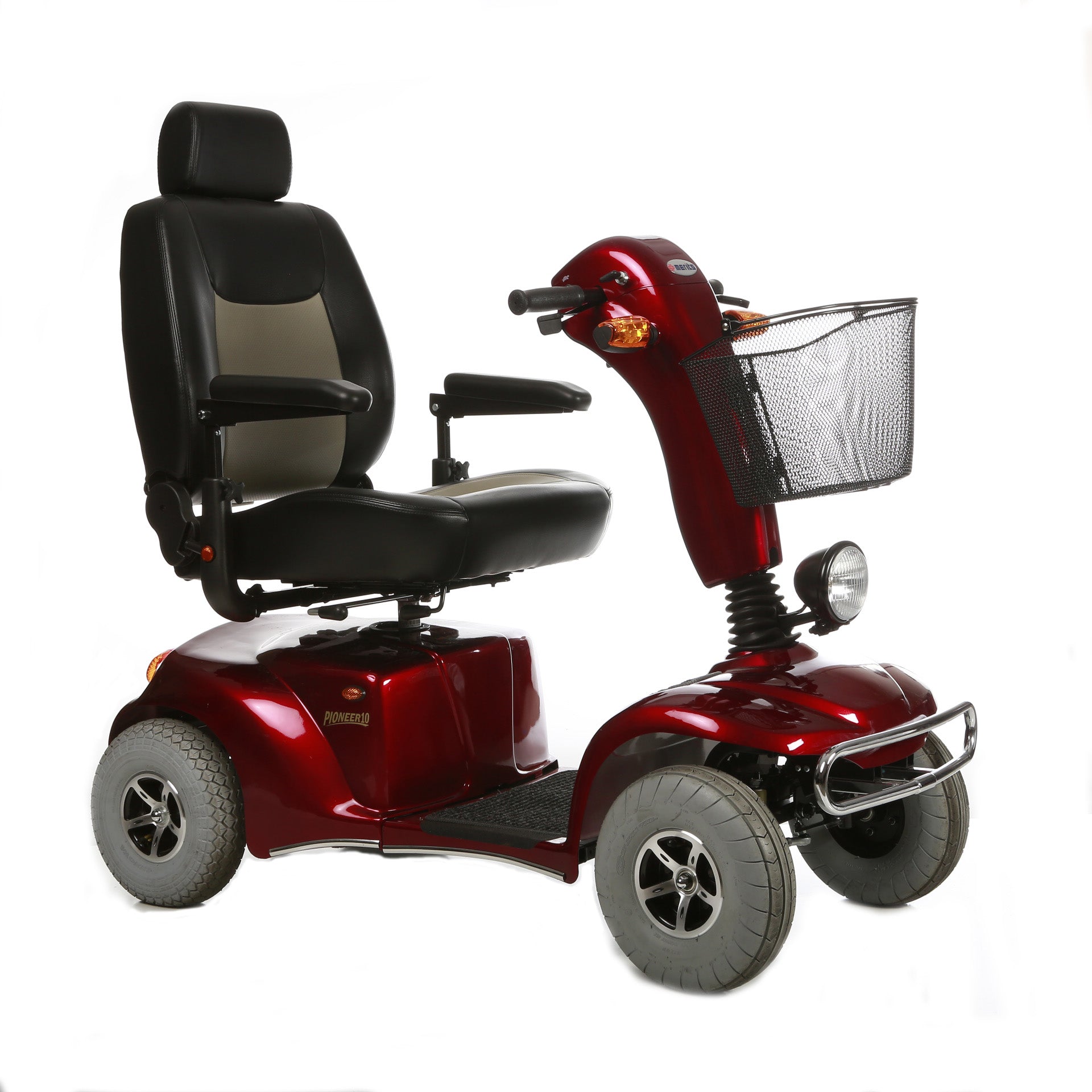

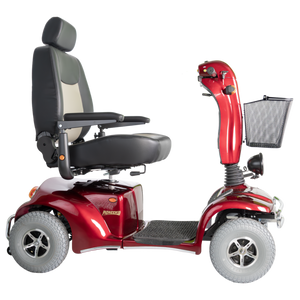

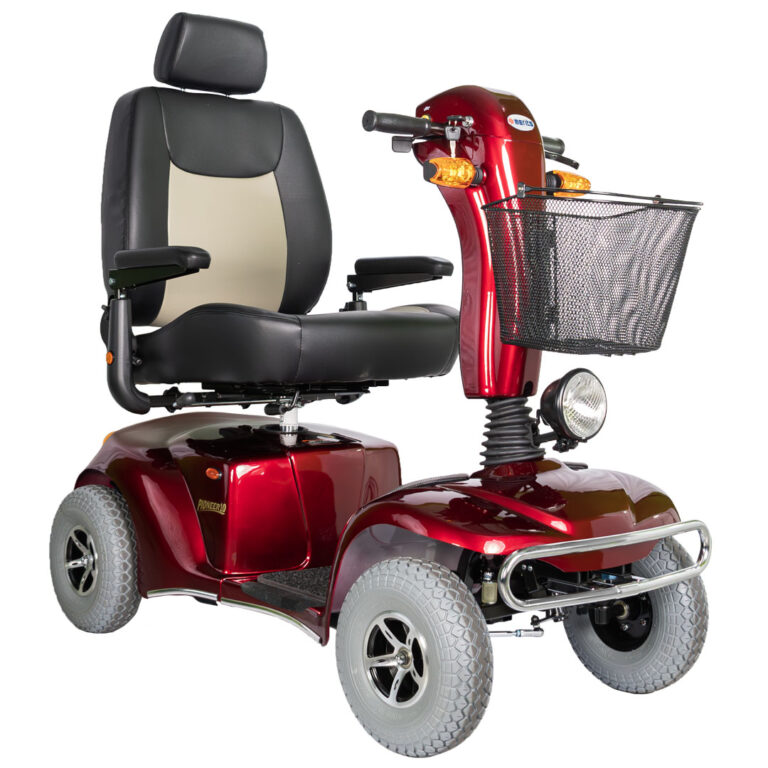

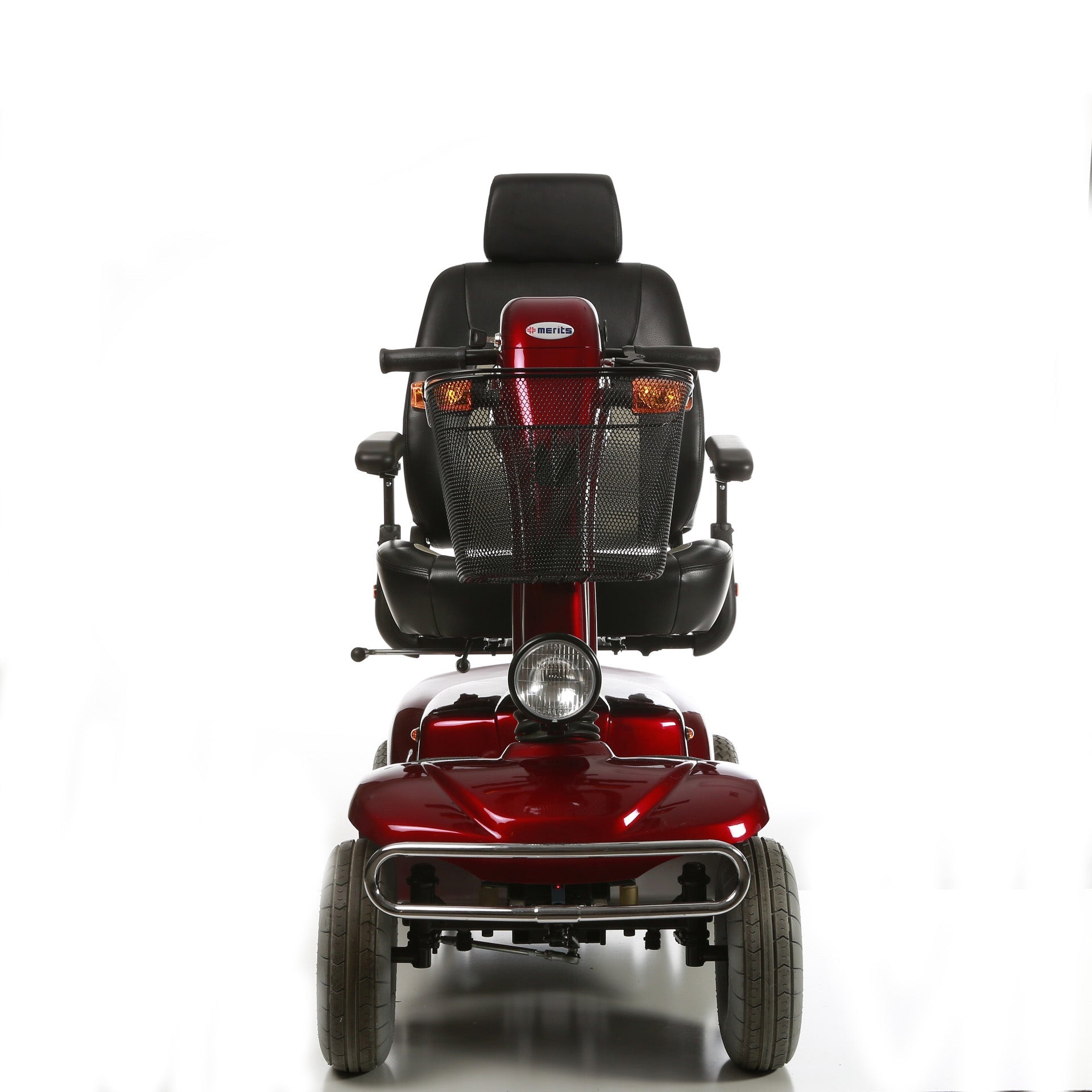

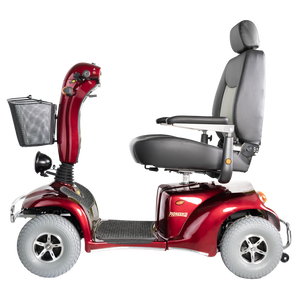

Pioneer 10
The Pioneer 10 was built with your safety in mind. The 4-wheel construction ensures stability while on the go, while the pre-set half-speed control on the scooter’s dashboard keeps you comfortable while driving. The Pioneer 10 comes with an automatic sensor, which lowers speed to half-speed when turning; assisting with sharp turns. The scooter’s frame features a heavy duty one-piece frame; great for the outdoors and uneven terrain.
Features
- Hydraulic, adjustable tiller
- 22”W x 20”D x 22”H, sliding, captain seat
- Half speed inhibit switch
- Headlight, tail lights, turn signals and hazard lights
- Four wheels provide more stability
- 4” ground clearance
Options
Swing-away joystick
USB adapter
5”power seat lift
Oxygen tank holder
Cane & crutch holder
Foldable rear basket
Walker holder
XL footplate
Canopy
Elevating legrests
Pioneer 10 Specifications
| Product Number | S341 |
| Weight Capacity | 500 lbs |
| Seat Width | 22" |
| Seat Depth | 20" |
| Backrest Height | 22" |
| Seat-to-Ground Height | 25" - 28" |
| Seat-to-Deck Height | 16" - 19" |
| Overall Length | 59" |
| Overall Width | 27" |
| Overall Height | 47" |
| Turning Radius | 62" |
| Ground clearance | 4" |
| Weight of Heaviest Piece | 121 lbs |
| Total Weight | 269 lbs |
| Max Speed | 6 mph |
| Per Charge Range | up to 32 miles |
| Motor | DC 24V, 400W |
| Controller | Dynamic Rhino2 160A |
| Battery Size (2) | 12V/Group 24 (70-80AH) |
| Charger | 6A off-board |
| Gradient | 12° |
| Front Wheel(s) | 4-Wheel: 12.5" flat-free |
| Rear Wheels | 12.5" flat-free |
| Suspension | Yes |
| HCPCS Code | K0899 |
